紅外自動大理石花崗巖切割機是在底座上設置軌道作直線運動，帶動金剛石圓鋸片，紅外切割刀片確定被切割石材的尺寸和直線度，并保證切割軌道按照直線運動進行石材板材切割加工的一種設備。

由于紅外自動橋機配有貼面機，所以切割石材完全是自動化控制的，只需要輸入所需尺寸即可獲得相應尺寸的板材。是近年來石材加工廠的首選設備。近年來，華龍石材機械有限公司開發了一種機頭可調整到角度的機型，可切割斜角邊、雙斜角邊等，極大地適應了各種對切割刃口的要求。

本機采用PLC控制，切割尺寸由計算機終端數字輸入，所有操作可手動或由計算機程序自動完成；控制面板位于機器右側，方便操作人員在放板時對機器進行調整；面板上有操作按鈕、編碼器和液晶顯示；本機最多可同時設置8種不同的切割尺寸，每種尺寸最多可重復9999次，并可設置多次下刀。切割模式;配備紅外刀儀，可準確定位；切割進給速度由變頻器調節；鋸片由電機直接驅動，可由液壓傳動驅動，自動旋轉90°；最大可切割3200mm × 2000mm板材；工作臺可承重600kg，可轉動0°~ 85°。支撐架與機架一體，可快速安裝使用，移動方便，無需提前搭建混凝土基礎。

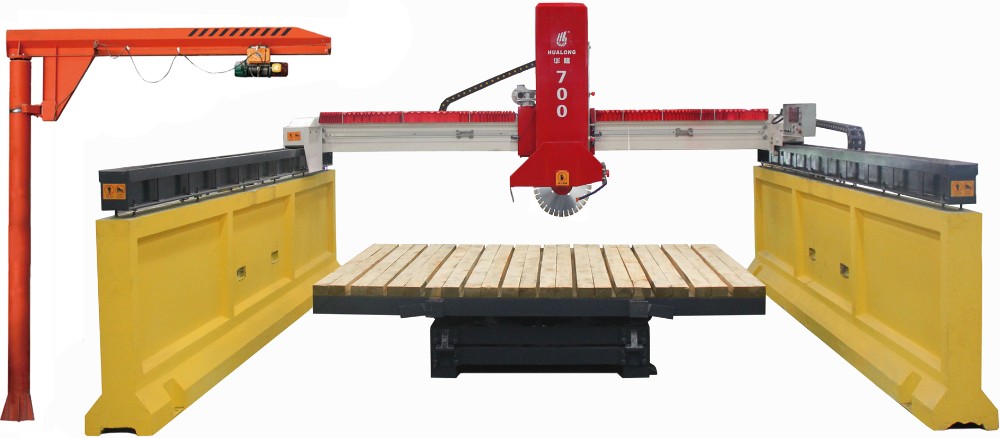

Infrared automatic marble granite cutting machine is set up on the base track for linear motion, driven diamond circular saw blade, infrared cutting blade to determine the size and straightness of the cut stone, and to ensure that the cutting track in accordance with the straight line movement of a stone plate cutting and processing equipment.

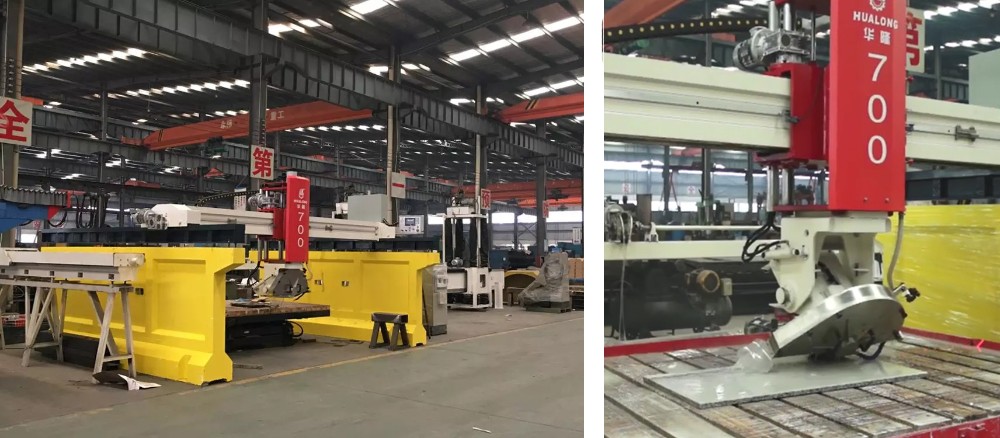

Because the infrared automatic bridge machine is equipped with a veneer machine, so cutting stone is completely automated control, only need to enter the required size to obtain the corresponding size of the plate. It is the preferred equipment for stone processing plant in recent years. In recent years, Hualong Stone Machinery Co., Ltd. has developed a machine head can be adjusted to the angle of the model, can cut bevelled edges, double bevelled edges, etc., greatly adapted to a variety of requirements for cutting edges.

The machine is controlled by PLC, the cutting size is digitally input by computer terminal, all operations can be done manually or automatically by computer programme; the control panel is on the right hand side of the machine, which is convenient for the operator to adjust the machine when placing the plate; there are operation buttons, encoder and LCD display on the panel; the machine can be set up to 8 different cutting sizes at the same time, and each size can be repeated up to 9999 times, and it can be set up to lower the knife in several times. Cutting mode; equipped with infrared knife instrument, can be accurately positioned; cutting feed speed adjusted by the frequency converter; saw blade driven directly by the motor, can be driven by the hydraulic transmission, automatic rotation of 90 °; the maximum cutting 3200mm × 2000mm plate; table can support 600kg, can be turned 0 ° ~ 85 °. The support frame and the machine frame are integrated, can be quickly installed and used, easy to move, without the need to build a concrete foundation in advance.
